ls180-250

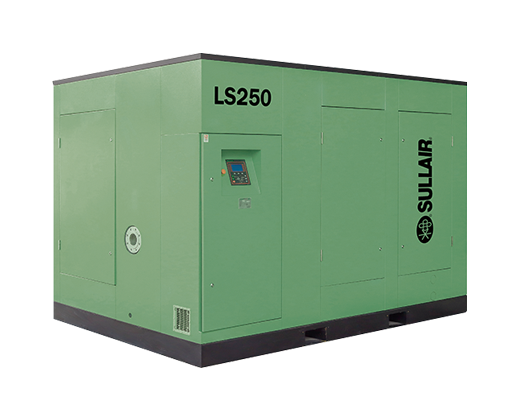

Sullair LS180-250 Series Stationary Oil Flooded Screw Air Compressor

LS180-250 series air compressor has IP55 IE3 efficiency motor and high efficiency air end with optimized intake and exhaust system, the compressor performance is stable and reliable.

  • 0℃- 46℃ ambient temperature design
  • 5-year warranty for air end（original spare parts shall be used and Sullair maintenance plan shall be followed)
  • Inlet valve with inlet modulation.
  • Elastic coupling + gear drive mode
  • Low noise and high efficiency axial fan (air-cooled model)
  • Stainless steel heat exchange tube water cooler (water-cooled model)
  • Sullube lubricant
  • Sullair customized two stage oil separator
  • Equipped with standard “Sullair Star” non-touch screen intelligent controller
  • Power frequency motor: Standard IP55 IE3 motor, F grade insulation B grade temperature rise
  • Zero loss floating ball type separator
  • 180-250 kW
  • 7.5-13.0 bar
  • 24.1-46.0 m3/min
  • Electronic spiral valve flow adjustment equipment (with 10’STS touch screen controller)
  • Hitachi brand inverter + IP55 IE3 VSD motor
  • Ultra-efficient IE4 motor
  • 24KT maintenance-free lubricant +10 years warranty of air end
  • Build-in energy recovery system
  • Motor RTD and space heater
  • 3KV/6KV/10KV class motor(IP23/IP55, without starter)
  • Other brand inverter, motor
  • Other power supplies
  • etc.
